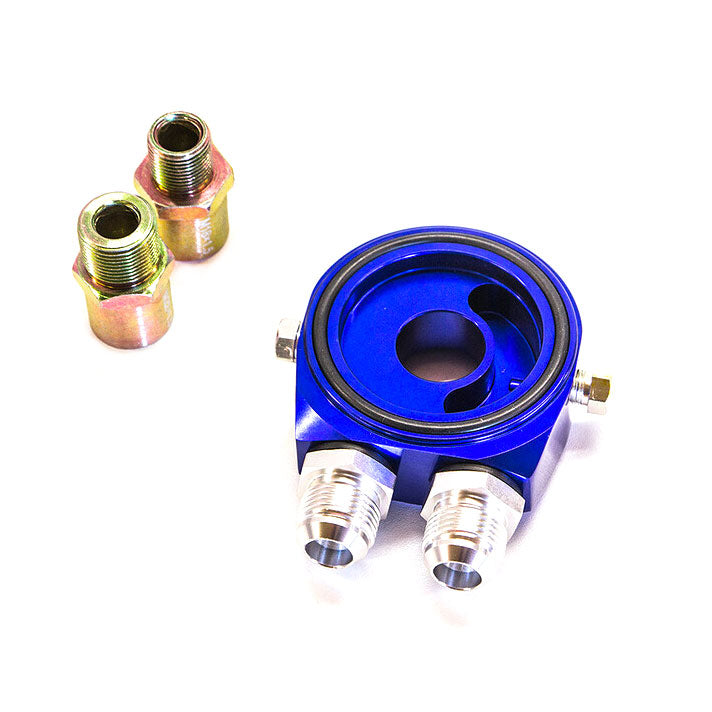

Sandwich plate with Dash 10 fittings and 1/8" NPT sensor ports (blue)
- Shipping in 24-48 hSubject to availability
- 14 days to returnUnfitted and in its original packaging
- Pay in instalmentsFinance your purchase at checkout
- Collection at our shopCartagena, Spain
Anodized aluminum sandwich plate that mounts between the engine block and the oil filter. It allows for the simultaneous connection of an oil cooler and pressure and temperature sensors.
It features two male Dash 10 fittings for cooler lines and two 1/8" NPT ports for sensors, compatible with most gauges on the market (Defi, Stack, VDO, Prosport...). It includes plugs for unused ports and 3/4"-16 UNF and M20 block adapters, which fit most Nissan, Toyota, Honda, or Mazda engines.
Features
- Cooler outlets: 2 male Dash 10 (-10 AN) fittings
- Sensor ports: 2 x 1/8" NPT
- Block adapters: 3/4"-16 UNF and M20
- Maximum filter diameter: 75 mm
- Material: anodized aluminum
- Color: blue
- Brand: Cooling Solutions
Installation does not require modifications, but the oil filter is displaced by approximately 25 mm, so ensure you have that clearance. Lubricate the O-rings with engine oil before assembly. This plate is not thermostatic, so oil flows through the cooler at all times.
